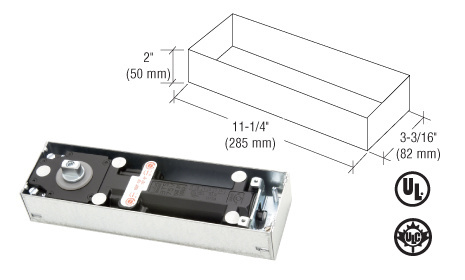

Dormakaba® Model BTS75VBF Adjustable Spring Power Size 1 to 4, 90º Hold Open Floor Mounted Door Closer Body in Cement Case

Item #: BTS75VBF90H0
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 12.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
Dormakaba® Model BTS75VBF Adjustable Spring Power Size 1 to 4, 90º Hold Open Floor Mounted Door Closer Body in Cement Case
×
Dormakaba® Model BTS75VBF Adjustable Spring Power Size 1 to 4, 90º Hold Open Floor Mounted Door Closer Body in Cement Case
Quantity Standard Price Sale Price Your Price
Dormakaba® Model BTS75VBF Adjustable Spring Power Size 1 to 4, 90º Hold Open Floor Mounted Door Closer Body in Cement Case Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 23
Dallas, Texas 12/20/2024
Chicago (Elgin), Illinois 1
San Francisco/Oakland (Union City), California 12/19/2024
Atlanta, Georgia 12/23/2024
New York Area (Secaucus, New Jersey) 1
Boston (Taunton), Massachusetts 12/23/2024
Orlando, Florida 12/24/2024
Denver, Colorado 12/24/2024
Seattle (Kent), Washington 12/24/2024
Cleveland (Solon), Ohio 12/23/2024
Philadelphia Area (Moorestown, New Jersey) 12/20/2024
Phoenix, Arizona 2
Las Vegas, Nevada 12/20/2024
Houston, Texas 3
Miami, Florida 3
San Diego, California 12/18/2024
Carolinas and Virginia, South Carolina 2
Product details
  • Americans with Disabilities Act
    Yes
  • Body Height
    2
  • Body Length
    11-1/4
  • Body Width
    3-3/16
  • Brand
    Dormakaba
  • Closer Body With Box
    Yes
  • Closer Type
    Floor Closer
  • Handing
    Double Acting
  • Hold Open
    90°
  • Independent Closing and Latching Valves
    Yes
  • Interchangeable Spindles
    Yes
  • Interior Or Exterior Doors
    Yes
  • Maximum Door Width - Exterior
    42 Inches
  • Maximum Door Width - Interior
    42 Inches
  • Maximum Weight Center Hung
    260 Pounds
  • Non Stocked Parts and Acessories Special Order
    Yes
  • Recommended Door Type
    Aluminum, Hollow Metal
  • Series
    BTS75V
  • Similar
    BTS802, J993HOD, J990NHOD, J904HOD
  • Spring Size
    8-1/2
  • UL Listed
    Yes
Product Overview
  • ADA BF Barrier Free, Adjustable Spring Power Size 1 to 4
  • Accommodates Doors Up to 42" (1067 mm) Wide and Weight up to 260 Lbs.
  • 25 Year Limited Warranty
  • ANSI A156.4 Grade 1, UL and CUL Listed

The Dormakaba® BT75V Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba® Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. Available in 90º or 105º hold open and no hold open full swing to 175º models. Accessories such as cover plates, pivots, center-hung and offset arms are also available.

Product Warning:

Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.

Although Dorma® BTS BF Series Closers comply with ADA specified opening forces where door without closer attached is 1 lb. opening force, they may not provide adequate spring power to control and close the door due to varying site conditions and door size.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
