CRL Satin Aluminum 48" x 96" Jackson® 1275 Push Pad Surface Vertical Rod Panic Exit Device

Finish/Color : Aluminum
Aluminum
Item #: 31127548628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 11.8 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Aluminum 48" x 96" Jackson® 1275 Push Pad Surface Vertical Rod Panic Exit Device
×
CRL Satin Aluminum 48" x 96" Jackson® 1275 Push Pad Surface Vertical Rod Panic Exit Device
Quantity Standard Price Sale Price Your Price
CRL Satin Aluminum 48" x 96" Jackson® 1275 Push Pad Surface Vertical Rod Panic Exit Device Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 15
Dallas, Texas 10/18/2024
Chicago (Elgin), Illinois 10/18/2024
San Francisco/Oakland (Union City), California 10/17/2024
Atlanta, Georgia 10/21/2024
New York Area (Secaucus, New Jersey) 10/21/2024
Boston (Taunton), Massachusetts 10/21/2024
Orlando, Florida 2
Denver, Colorado 1
Seattle (Kent), Washington 10/22/2024
Cleveland (Solon), Ohio 10/21/2024
Philadelphia Area (Moorestown, New Jersey) 10/18/2024
Phoenix, Arizona 10/17/2024
Las Vegas, Nevada 3
Houston, Texas 2
Miami, Florida 10/23/2024
San Diego, California 10/16/2024
Carolinas and Virginia, South Carolina 10/22/2024
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Height
    96 in. (2438.4 mm)
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Aluminum
  • Handing
    Non Handed
  • Includes
    Mounting Hardware
  • Material - End Cap
    Aluminum
  • Material - Housing
    High Tensile Strength Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    1275
  • Panic Bar Base Height
    3-3/16 in. (81 mm)
  • Panic Bar Projection
    2-7/8 in. (73 mm)
  • Panic Bar Width Net
    46-1/2 in. (1181.1 mm)
  • Panic Dogging
    Standard Hex Key Dogging
  • Panic Type
    Surface Vertical Rod
  • Push Pad Width
    24 in. (609.6 mm)
  • Recommended Door Type
    Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
  • Replacement Parts
    302861
  • Series
    1200
  • Similar
    3327AE03626, 3327AE04626, 360L626
  • UL Listed
    Yes
Product Overview
  • Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
  • Soft Touch Smooth Action Push-Pad
  • Can Be Cut to Size
  • Standard Hex Key Dogging

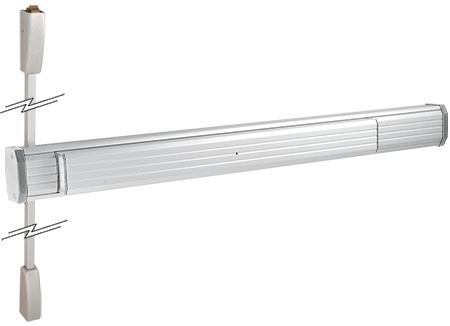

This sleek, contemporary CRL Jackson® Surface Vertical Rod Panic Exit Device is designed for use on a minimum of 1-3/4" (44.5 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for standard 48" wide and 84" (2.13 m) tall doors, but may be trimmed for narrower conditions. The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on bar insert for instant release. This device features specially engineered Jackson® 'C' Top Latch and latch-mating strikes designed for increased security. Overall projection is less than 3" (75 mm) from the surface.

SPECIFICATIONS:

1275 Surface Vertical Rod Device
  • Stocked in Both 36" and 48" (914 mm and 1.22 m)
  • Standard Door Heights 84" (2.13 m) and 96" (2.44 m) – Field Sizeable

    MATERIALS:
    Base and Push-Pad: Extruded Aluminum
    Mechanical Components: Stainless and Hardened, Plated Steel
    Latch and Strikes: Sintered Steel
    Metal End Caps

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
