CRL 1900A Series 12" x 12" Door Louver

 Limited stock available. This item will be discontinued. All sales are final.
Finish/Color : Dark Bronze
Dark Bronze
Item #: 1900A12X12
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 7.5 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 1900A Series 12" x 12" Door Louver
CRL 1900A Series 12" x 12" Door Louver
Quantity Standard Price Sale Price Your Price
CRL 1900A Series 12" x 12" Door Louver Stock
Los Angeles, California 3
Dallas, Texas 7/2/2024
Chicago (Elgin), Illinois 7/2/2024
San Francisco/Oakland (Union City), California 6/27/2024
Atlanta, Georgia 7/1/2024
New York Area (Secaucus, New Jersey) 7/1/2024
Boston (Taunton), Massachusetts 7/5/2024
Orlando, Florida 7/2/2024
Denver, Colorado 7/2/2024
Seattle (Kent), Washington 7/2/2024
Cleveland (Solon), Ohio 7/2/2024
Philadelphia Area (Moorestown, New Jersey) 7/5/2024
Phoenix, Arizona 6/27/2024
Las Vegas, Nevada 6/27/2024
Houston, Texas 7/2/2024
Miami, Florida 7/2/2024
San Diego, California 7/1/2024
Carolinas and Virginia, South Carolina 7/2/2024
Product details
  • Certification
    UL and WHI
  • Faceplate
  • Finish/Color:
    Dark Bronze
  • Fire Rating Hour
    1.5 hrs.
  • Free Flow Area
    0.45 sq. ft. (0.042 m2)
  • Length
    12 in. (304.8 mm)
  • UL Listed
  • Width
    12 in. (304.8 mm)
Product Overview
  • Fire Rated
  • Adjustable Blades
  • Fusible Link for Automatic Closing
  • Bronze Powder Coat Finish
  • 45% Free Flow Area

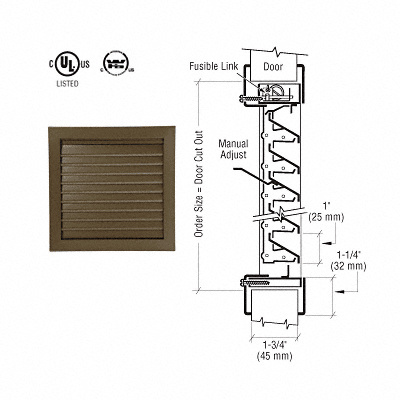

CRL's 1900A Series Door Louvers are listed with both UL and WHI, and are ideal for installation in 1-3/4" (44.5 mm) thick fire doors. Constructed with a 16 gauge CRS frame with mitered and welded corners, the Z-blade louvers are riveted to the operating bar at 1" (25 mm) intervals. The screws are fastened through the frame into the louver core, which leaves the corridor side of the frame free of fasteners for security purposes. If the spring-loaded fusible link is melted due to fire, the action bar is actuated, which closes and locks the blades. Custom sizes and finishes are also available.

Fire Ratings with UL and WHI Classification Marks Model 1900A is rated for use in fire doors up to 1-1/2 hour rating. Louver size shall not exceed maximum of 576 sq. inches, 24" W and 24" H. The minimum width and height shall not be less than 10" and 6", respectively. Louvers may be provided for classified hollow metal type and composite type fire doors. Consult with the Local Authority Having Jurisdiction (AHJ) to determine appropriate standards. Louver frame will be labeled with Listing Mark.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
