No longer available.

CRL 490 Series Satin Anodized Drop Ceiling Mount Sliding Door with Fixed Panel Kit

 Discontinued item. All sales are final.
No longer available.
Finish/Color : Satin Anodized
Item #: CRL4901D
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 31.967 Pounds
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov

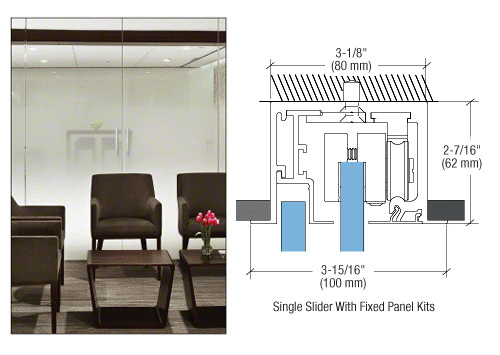

CRL 490 Series Satin Anodized Drop Ceiling Mount Sliding Door with Fixed Panel Kit
×
CRL 490 Series Satin Anodized Drop Ceiling Mount Sliding Door with Fixed Panel Kit
Quantity Standard Price Sale Price Your Price
CRL 490 Series Satin Anodized Drop Ceiling Mount Sliding Door with Fixed Panel Kit Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Finish/Color:
    Satin Anodized
  • Glazing Thickness
    3/8 To 1/2 in. (10 To 12 mm)
  • Glazing Type
    Tempered Insulated
  • Maximum Door Width
    53-9/16 in. (1360 mm)
  • Maximum Panel Weight
    100 lbs. (45.4 kg)
  • Mounting Application
    Dropped Ceiling
  • Top Hung
    Yes
  • Track Length
    118 in. (2997 mm)
Product Overview
  • Kits Available With or Without Softbrake Braking System for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
  • Can Accommodate Properly Installed Doors Weighing Up to 330 Pounds (150 kg)
  • Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
  • Track Length is 118" (3 m)
  • Use Monolithic Tempered Glass

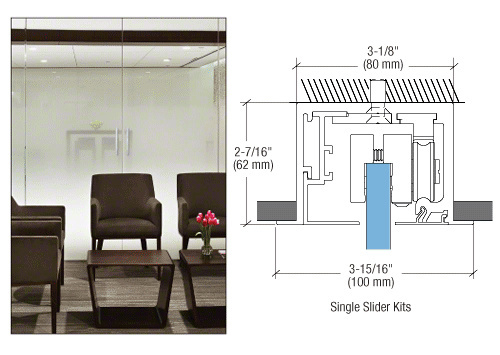

CRL 490 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite, and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized or brushed stainless anodized finishes, with a special order option to clad or powder paint in many architectural finishes. Contact Technical Sales for Commercial Products for kit selection or installation assistance.

Each Kit Contains:
  • 118" (3m) of CRL4933EXT Dropped Ceiling Top Track Kit
  • 118" (3m) of CRL3979A Bottom Channel
  • Glazing Vinyl for 3/8" To 1/2" (10 To 12 mm) Glass
  • 1 Set CRL4939 Top Hangers
  • 1 Set CRL4942 Roller Stops
  • 1 Each CRL2940 Bottom Guide
  • 1 Set CRL2945 Door Edge Guards
  • 1 Set CRL290TF Top Track Insert Fasteners

    One "Softbrake" is required for each direction of travel. Minimum sliding panel width of 30-7/8" (785 mm) for control in a single direction: 42-1/2" (1080 mm) for control in both directions. Existing CRL490 Series installations can be easily upgraded by ordering kits.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

  • Technical References & CAD Drawings
