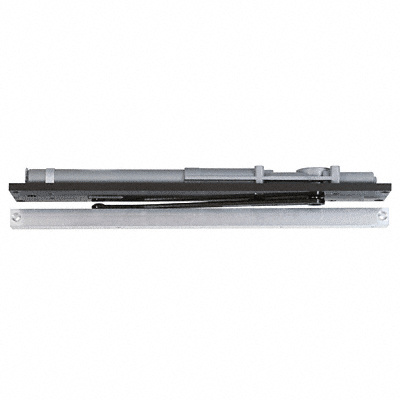

LCN Overhead Concealed ADA Spring Size 1 Right Hand No Hold Open Closer Dark Bronze

Finish/Color : Dark Bronze
Dark Bronze
Item #: 2031RDU
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 12.6 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
LCN Overhead Concealed ADA Spring Size 1 Right Hand No Hold Open Closer Dark Bronze
×
LCN Overhead Concealed ADA Spring Size 1 Right Hand No Hold Open Closer Dark Bronze
Quantity Standard Price Sale Price Your Price
LCN Overhead Concealed ADA Spring Size 1 Right Hand No Hold Open Closer Dark Bronze Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 3
Dallas, Texas 12/10/2024
Chicago (Elgin), Illinois 12/13/2024
San Francisco/Oakland (Union City), California 1
Atlanta, Georgia 1
New York Area (Secaucus, New Jersey) 12/10/2024
Boston (Taunton), Massachusetts 12/10/2024
Orlando, Florida 12/17/2024
Denver, Colorado 12/10/2024
Seattle (Kent), Washington 12/17/2024
Cleveland (Solon), Ohio 12/16/2024
Philadelphia Area (Moorestown, New Jersey) 12/13/2024
Phoenix, Arizona 12/12/2024
Las Vegas, Nevada 12/13/2024
Houston, Texas 12/10/2024
Miami, Florida 12/18/2024
San Diego, California 12/11/2024
Carolinas and Virginia, South Carolina 3
Product details
  • Americans with Disabilities Act
    Yes
  • Body Height
    1-5/8 in. (41.3 mm)
  • Body Length
    20-5/8 in. (523.9 mm)
  • Body Width
    3-23/32 in. (94.5 mm)
  • Case Quantity
    2
  • Closer Type
    Overhead Concealed
  • Cover Plate Length
    21-7/8 in. (555.6 mm)
  • Cover Plate Width
    4 in. (101.6 mm)
  • Door Height
    96 in. (2438.4 mm)
  • Handing
    Right Hand
  • Hold Open Option Available
    Yes
  • Maximum Door Width - Exterior
    36 in. (914.4 mm)
  • Maximum Door Width - Interior
    36 in. (914.4 mm)
  • Recommended Door Type
    Aluminum,Hollow Metal
  • Slide Track Depth
    1-3/8 in. (34.9 mm)
  • Slide Track Length
    22-1/2 in. (571.5 mm)
  • Spring Size
    5
  • UL Listed
    Yes
Product Overview
  • Requires Minimum 1-3/4" x 4" (44.5 x 102 mm) Wide Transom
  • Certified to ANSI Standard A156.4, Grade 1
  • UL and cUL Listed for Self-Closing Doors, without Hold Open
  • Fixed Spring Sizes Available for Interior Doors to 54" (1.37 m) and Exterior to 42" (1.07 m)

The LCN 2030 Series Pacer® Overhead Concealed Closer is a heavy-duty closer designed to fit a shallow 1-3/4" (44.5 mm) x 4" (102 mm) transom. The single lever arm and roller assembly provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. The closer is handed for right or left swing doors and available in fixed spring sizes that will meet ADA requirements and accommodate interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m). The series is UL and cUL listed for self-closing doors without hold open.

Product Warning:

Reduced Force ADA Closers installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient force to reliably close and latch the door.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
