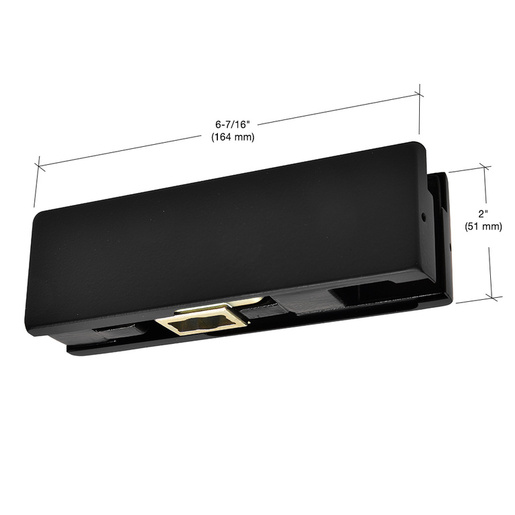

DORMAKABA® Matte Black Bottom Door Patch Fitting with Bottom Insert For 3/4" Glass

Finish/Color : Matte Black
Item #: PT1034MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
DORMAKABA® Matte Black Bottom Door Patch Fitting with Bottom Insert For 3/4" Glass
×
DORMAKABA® Matte Black Bottom Door Patch Fitting with Bottom Insert For 3/4" Glass
Quantity Standard Price Sale Price Your Price
DORMAKABA® Matte Black Bottom Door Patch Fitting with Bottom Insert For 3/4" Glass Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 4
Dallas, Texas 2/18/2025
Chicago (Elgin), Illinois 2/18/2025
San Francisco/Oakland (Union City), California 2/20/2025
Atlanta, Georgia 2/18/2025
New York Area (Secaucus, New Jersey) 2/18/2025
Boston (Taunton), Massachusetts 2/18/2025
Orlando, Florida 2/25/2025
Denver, Colorado 2/18/2025
Seattle (Kent), Washington 2/18/2025
Cleveland (Solon), Ohio 2/18/2025
Philadelphia Area (Moorestown, New Jersey) 2/21/2025
Phoenix, Arizona 2/20/2025
Las Vegas, Nevada 2/21/2025
Houston, Texas 2/18/2025
Miami, Florida 2/26/2025
San Diego, California 2/17/2025
Los Angeles(Gardena) In Other Service Center
Carolinas and Virginia, South Carolina 2/24/2025
Product Details
  • Finish/Color:
    Matte Black
  • Glazing Thickness
    3/4 in. (19 mm)
  • Pivot Setback
    2-3/4
  • Series
    DORMAKABA®
  • Type
    Bottom
  • With Insert
    Yes
  • Works With
    1NT301 Insert
Product Overview
  • 2-3/4" (70 mm) Pivot Setback
  • For 3/4" (19 mm) Glass
  • Use Monolithic Tempered Glass

DORMAKABA® Bottom Patch Fittings are used with our bottom door pivots or floor closers. It fits in the lower corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed or polished stainless steel finishes.


The following guidelines are to be used when making a door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter Hole and Corner Notch

COMES WITH:
Template and Instructions

Product Warning

These fittings are not for use with laminated glass.
