CRL-Blumcraft® Black/Bronze Anodized Sidelite Tempered - 3/8" Glass

Finish/Color : Black Bronze Anodized
Item #: 13ST38DU
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL-Blumcraft® Black/Bronze Anodized Sidelite Tempered - 3/8" Glass
×
CRL-Blumcraft® Black/Bronze Anodized Sidelite Tempered - 3/8" Glass
Quantity Standard Price Sale Price Your Price
CRL-Blumcraft® Black/Bronze Anodized Sidelite Tempered - 3/8" Glass Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Bottom Rail Height
    3/4 in. (19 mm)
  • Finish/Color:
    Black Bronze Anodized
  • Fully Glazed
    Yes
  • Glazing Thickness
    3/8 in. (10 mm)
  • Material
    Aluminum
  • Maximum Door Height
    108 in. (2743 mm)
  • Maximum Door Width
    42 in. (1067 mm)
  • Monolithic Glass
    Yes
  • Top Rail Height
    3/4 in. (19 mm)
Product Overview
  • Fully Glazed with 3/8", 1/2", 5/8" or 3/4" (10, 12, 16 or 19 mm) Laminated or Tempered Glass
  • Six Standard Architectural Finishes
  • Custom Finishes Available

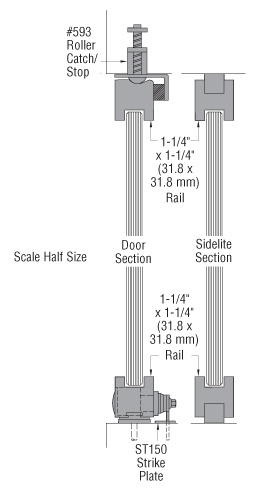

CRL-Blumcraft® 1301 Series Display Case Doors and Sidelites provide the most clear viewable area of any heavy glass display case system available today. Top and bottom rails measure only 1-1/4" x 1-1/4" (31.8 x 31.8 mm), and are prepped for pivots and locks. We offer two systems, the 1301-SM Series With Surface Mounted Pivots, and the 1301-CM Series With Continuous Mounting Bars that house the pivots, locks, and catches. Both are available with center or offset pivots.

Matching fully glazed sidelites and an optional perimeter trim are available for both systems. 1301 Display Case Doors and Sidelites are available in five standard architectural finishes: satin anodized, black bronze anodized, brushed or polished stainless steel, and polished brass. Powder painted or oil rubbed bronze finishes available on special order.

1301 Series Display Case Doors and Sidelites are available with 3/8", 1/2", 5/8" or 3/4" (10, 12, 16 or 19 mm) glass, either tempered or laminated, in clear, tinted, low-iron, anti-reflective, or specialty glass upon request.

Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
