CRL Brass Large Wall Mount Set Screw Hinge

Finish/Color : Polished Brass
Item #: EH170
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : Pack

Shipping Weight : 10.56 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brass Large Wall Mount Set Screw Hinge
×
CRL Brass Large Wall Mount Set Screw Hinge
Quantity Standard Price Sale Price Your Price
CRL Brass Large Wall Mount Set Screw Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 6
Dallas, Texas 2/25/2025
Chicago (Elgin), Illinois 2/25/2025
San Francisco/Oakland (Union City), California 4
Atlanta, Georgia 2/24/2025
New York Area (Secaucus, New Jersey) 6
Boston (Taunton), Massachusetts 2/24/2025
Orlando, Florida 2/25/2025
Denver, Colorado 2/25/2025
Seattle (Kent), Washington 2/25/2025
Cleveland (Solon), Ohio 2/25/2025
Philadelphia Area (Moorestown, New Jersey) 2/28/2025
Phoenix, Arizona 2/20/2025
Las Vegas, Nevada 2/21/2025
Houston, Texas 2/25/2025
Miami, Florida 2/26/2025
San Diego, California 2/24/2025
Los Angeles(Gardena) In Other Service Center
Carolinas and Virginia, South Carolina 2/24/2025
Product Details
  • Finish/Color:
    Polished Brass
  • Glazing Thickness
    3/16 in. To 5/16 in. (5 mm To 8 mm)
  • Height
    2-3/8 in. (60.3 mm)
  • Material
    Brass
  • Maximum Door Width
    18 in. (457.2 mm)
  • Pack Quantity
    2
  • Weight Capacity
    20 lbs. (9.1 kg)
  • Width
    1-1/4 in. (31.8 mm)
Product Overview
  • For 3/16" to 5/16" (5 to 8 mm) Glass
  • No Holes or Cut-Outs Required
  • Use Monolithic Tempered Glass
  • Two Per Package

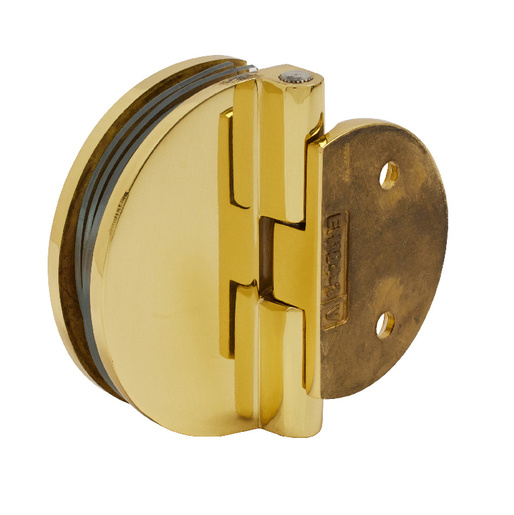

These CRL Large Wall Mount Set Screw Hinges will give you unlimited flexibility in design. They will receive from 3/16" to 5/16" (4.8 to 7.9 mm) tempered glass for that thick glass look, and still offer smooth operation. The maximum recommended door width is 18" (457 mm). Maximum weight should not exceed 20 lbs. (9 kg). The glass is secured with three plastic tipped set screws for no-drill attachment. Two per pack with matching finish wood screws.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

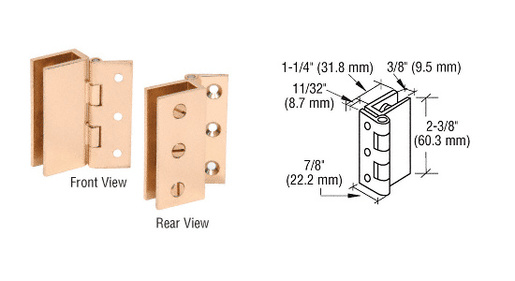

Technical References & CAD Drawings
