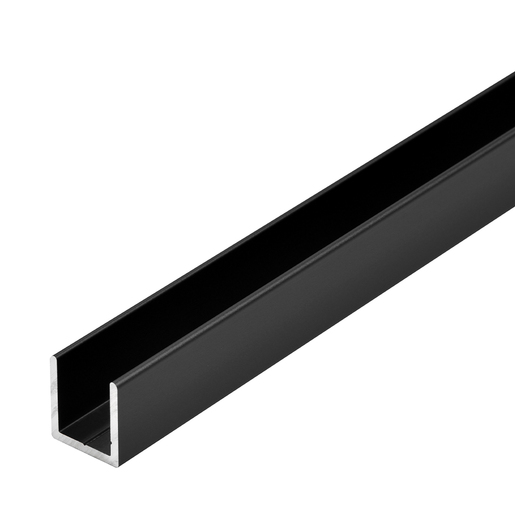

CRL Matte Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95"

text.skipToContent text.skipToNavigation

More Choices

Click Image To Enlarge

CRL Matte Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95"

Finish/Color : Matte Black

Oil Rubbed Bronze

Satin Anodized

Brushed Anodized

Antique Brushed Nickel

Brushed Stainless Anodized

Matte Black

Item #: SDCD12MBL

View Prices with a Purchase Account

Minimum Order Quantity : 1

Unit of Measure : each

Where to buy

View Technical References

Shipping Weight : 1.48 Pounds

Shipping Limitations : None

Compliance and Restrictions

Warning Reproductive Harm - www.p65warnings.ca.gov

CRL Matte Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95"

❮

❯

CRL Matte Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95"

Quantity	Standard Price	Sale Price	Your Price

CRL Matte Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95" Stock

Branch Location	STOCK AVAILABILITY
Kent	Ask Us 1.800.421.6144
Secaucus	397
Solon	84
Union City	101
Rock Hill	24
Hauppauge	17
San Diego	62
Atlanta	37
Orlando	Ask Us 1.800.421.6144
Moorestown	59
Hamilton	Ask Us 1.800.421.6144
Phoenix	109
Hazelwood	Ask Us 1.800.421.6144
Los Angeles	3051
Denver	26
Sunrise	25
Elgin	287
Taunton	28
Dallas	Ask Us 1.800.421.6144
Tampa	32
Las Vegas	Ask Us 1.800.421.6144
Houston	38

Related Products

Quick view

CRL Mildew Resistant Clear 33S Silicone Sealant

Item # : 33SMRC

CRL Polished Chrome 24" BM Series Back-to-Back Towel Bar Without Metal Washers

Item # : BMNW24X24CH

CRL Polished Chrome Geneva 037 Series Wall Mount Full Back Plate Standard Hinge

Item # : GEN037CH

CRL Brite Anodized Deluxe Shower Door Header Kit - 95"

Item # : SDH980BA

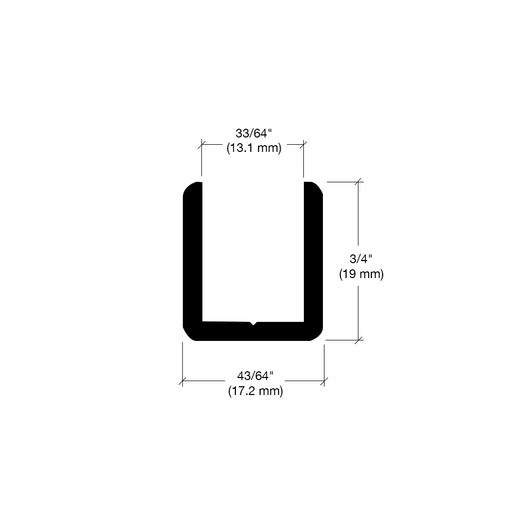

Product Details Product Overview Technical References & CAD Drawings

Finish/Color:

Matte Black
Glazing Pocket Width

.518
Glazing Thickness

1/2 in. (12 mm)
Height

3/4 in. (19 mm)
Length

95 in. (2413 mm)
Material

Aluminum
Profile

Deep
Width

11/16 in. (17.1 mm)

For 3/8" and 1/2" (10 and 12 mm) Thick Glass
Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
May Be Used Alone or with Regular Depth U-Channel
Wet Glazed with Clear Silicone to Secure Glass
All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
End Caps Offered to Conceal Ends of Channel
Use Monolithic Tempered Glass

CRL Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 1/2" (12 mm) thick glass are available, and are individually wrapped to protect the finish. The 3/4" (19 mm) high profile Deep U-Channel can be used also as the top channel in installations where the glass must be inserted into the top, then lowered into the Regular U-Channel used at the bottom of the enclosure. Over a dozen stock finishes are offered.

SPECIFICATIONS:
Typical Uses: Most Commonly Used in Frameless Shower Installations for Securing Fixed Panels of Glass to the Wall, Ceiling or Floor

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
