CRL-Blumcraft® Satin Anodized 3243 Series 1-1/2" x 1-1/2" Extruded Aluminum Cap Rail

Finish/Color : Satin Anodized
Item #: 3243SA
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : Stock Length

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL-Blumcraft® Satin Anodized 3243 Series 1-1/2" x 1-1/2" Extruded Aluminum Cap Rail
×
CRL-Blumcraft® Satin Anodized 3243 Series 1-1/2" x 1-1/2" Extruded Aluminum Cap Rail
Quantity Standard Price Sale Price Your Price
CRL-Blumcraft® Satin Anodized 3243 Series 1-1/2" x 1-1/2" Extruded Aluminum Cap Rail Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 22
Dallas, Texas 4/30/2024
Chicago (Elgin), Illinois 4/30/2024
San Francisco/Oakland (Union City), California 5/2/2024
Atlanta, Georgia 4/30/2024
New York Area (Secaucus, New Jersey) 4/30/2024
Boston (Taunton), Massachusetts 5/6/2024
Orlando, Florida 5/7/2024
Denver, Colorado 4/30/2024
Seattle (Kent), Washington 4/30/2024
Cleveland (Solon), Ohio 4/30/2024
Philadelphia Area (Moorestown, New Jersey) 5/3/2024
Phoenix, Arizona 5/2/2024
Las Vegas, Nevada 5/2/2024
Houston, Texas 4/30/2024
Miami, Florida 5/7/2024
San Diego, California 4/29/2024
Carolinas and Virginia, South Carolina 5/7/2024

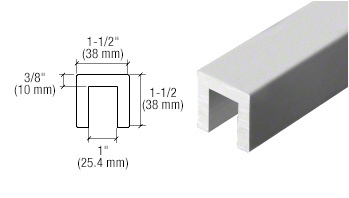

Product details
  • Finish/Color:
    Satin Anodized
  • Glass Pocket Width
    1 in. (25 mm)
  • Glazing Insert
    ST302
  • Glazing Thickness
    13/16 in. (21 mm)
  • Height
    1-1/2 in. (38 mm)
  • Length
    120 in. (3048 mm)
  • Material
    6063-T5 Aluminum
  • Top of Rail to Top of Glass Pocket
    3/8
  • Width
    1-1/2 in. (38 mm)
Product Overview
  • Intended for Use on 3/4" (19 mm) Tempered Glass
  • Ready-to-Install
  • Extruded Heavy-Duty Solid Aluminum Construction
  • Two Architectural Finishes, Plus Mill Aluminum Available From Stock
  • Stainless Steel Adapter Strips Sold Separately
  • Sold in 120" (3.05 m) Stock Lengths or Custom Fabricated to Size

CRL-Blumcraft®'s Top Quality Extruded Cap Rails are produced from 6063-T5 aluminum and offered in two architectural finishes, plus mill aluminum. Cap Rails are sold in stock lengths or can be custom fabricated to size. The use of stainless steel Adapter Strips, Very High Bond Cladding Tape, and Splice Pins are required during the installation process.

When using CRL-Blumcraft®'s 3243 Series Cap Rails, it is important to install the stainless steel Adapter Strips onto the glass edge with Very High Bond Tape before installing your Cap Rail.

NOTE: Each Cap Rail comes complete with pre-drilled holes 24" (610 mm) on center and set screws along one side of the Cap Rail for proper attachment to the Adapter Strips.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
