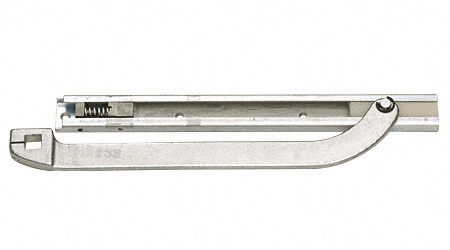

CRL Jackson® Aluminum Shallow Depth Mortise Type Offset Arm Assembly

Finish/Color : Aluminum
Aluminum
Item #: 201134LC628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 2.35 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Jackson® Aluminum Shallow Depth Mortise Type Offset Arm Assembly
×
CRL Jackson® Aluminum Shallow Depth Mortise Type Offset Arm Assembly
Quantity Standard Price Sale Price Your Price
CRL Jackson® Aluminum Shallow Depth Mortise Type Offset Arm Assembly Stock
Branch Location STOCK AVAILABILITY
Calgary Ask Us 1.800.421.6144
Concord Ask Us 1.800.421.6144
Los Angeles Est. Availability 2026-01-12
Langley 1
Montreal Ask Us 1.800.421.6144
Product Details
  • Finish/Color:
    Aluminum
  • Handing
    Non Handed
  • Includes
    Slide Track And Arm Assembly
  • Length
    12-7/8 in. (327 mm)
  • Minimum Top Rail Depth
    5/8 in. (15.9 mm)
  • Mortise Type
    Shallow
  • Radius Corners
    No
  • Recommended Door Type
    Aluminum, Hollow Metal
  • Square Corners
    No
  • Type
    Off Set Closer Arm And Track Assembly
Product Overview
  • Shallow Depth 5/8" (16 mm) Top Rail

The CRL Jackson® Shallow Depth Offset Arm Assembly includes a slide-track, offset arm, and all mounting hardware. The slide track requires a minimum top rail depth of 5/8" (16 mm) to be mortised into the door.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
