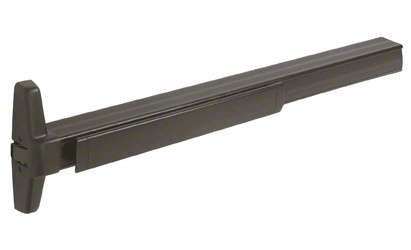

Von Duprin® Rim Panic Exit Device with Grooved Case Dark Bronze Finish 48” Exit Only

Finish/Color : Dark Bronze
Dark Bronze
Item #: 33AE04313
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
Von Duprin® Rim Panic Exit Device with Grooved Case Dark Bronze Finish 48” Exit Only
×
Von Duprin® Rim Panic Exit Device with Grooved Case Dark Bronze Finish 48” Exit Only
Quantity Standard Price Sale Price Your Price
Von Duprin® Rim Panic Exit Device with Grooved Case Dark Bronze Finish 48” Exit Only Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 2
Dallas, Texas 12/20/2024
Chicago (Elgin), Illinois 12/20/2024
San Francisco/Oakland (Union City), California 12/19/2024
Atlanta, Georgia 12/23/2024
New York Area (Secaucus, New Jersey) 12/23/2024
Boston (Taunton), Massachusetts 12/23/2024
Orlando, Florida 12/24/2024
Denver, Colorado 12/24/2024
Seattle (Kent), Washington 12/24/2024
Cleveland (Solon), Ohio 12/23/2024
Philadelphia Area (Moorestown, New Jersey) 12/20/2024
Phoenix, Arizona 12/19/2024
Las Vegas, Nevada 12/20/2024
Houston, Texas 12/20/2024
Miami, Florida 12/25/2024
San Diego, California 12/18/2024
Carolinas and Virginia, South Carolina 12/24/2024
Product details
  • Brand
    Von Duprin
  • Case Quantity
    2
  • Certification
    ANSI/BHMA 156.3 Grade 1
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Dark Bronze
  • Handing
    Non Handed
  • Includes
    Mounting Hardware
  • Material
    Aluminum
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    33AEO
  • Panic Bar Base Height
    2-1/4 in. (57.2 mm)
  • Panic Bar Projection
    3-13/16 in. (96.8 mm)
  • Panic Bar Width Net
    47-3/8 in. (1203.3 mm)
  • Panic Body Style
    Grooved
  • Panic Dogging
    Standard Hex Key Dogging
  • Panic Head Base Width
    2-11/16 in. (68.3 mm)
  • Panic Head Height
    8-3/16 in. (208 mm)
  • Panic Type
    Rim Exit Device
  • Push Pad Width
    24 in. (609.6 mm)
  • Recommended Door Type
    Aluminum, Narrow, Medium, Wide Style, Wood, Hollow Metal
  • Series
    33A
  • UL Listed
    Yes
Product Overview
  • Available with Smooth or Grooved Housing
  • Non-Handed
  • One Piece Center Case Cover

The IR Von Duprin® 33A Series Rim Panic Exit Device is designed with a grooved case and is intended to fit door stiles as narrow as 1-3/4" (44 mm). This device features the "quiet One"® technology which eliminates most noise associated with Exit Devices and is manufactured to the highest standard of quality. All 33A and 35A Series Exit Devices are UL Listed for Panic Exit Hardware, and are tested in accordance to ANSI A156.3, Grade 1 standards. For additional information, contact our Technical Sales Department.

REPLACEMENT PARTS:
  • DL2170SCKDDU
  • DL2170Y8KDDU
  • Special Order

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

  • Technical References & CAD Drawings
