CRL 60" Long Outside Rail for Multi-Purpose Glass Storage System

Item #: 2005423
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 55.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 60" Long Outside Rail for Multi-Purpose Glass Storage System
×
CRL 60" Long Outside Rail for Multi-Purpose Glass Storage System
Quantity Standard Price Sale Price Your Price
CRL 60" Long Outside Rail for Multi-Purpose Glass Storage System Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Height
    5-1/2 in. (140 mm)
  • Width
    11 in. (279 mm)
Product Overview

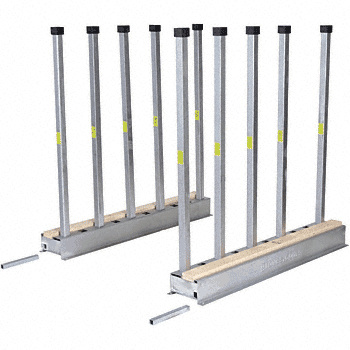

  • Fixed Post System for Wood Cases, Glass Packs, and Loose Lites
  • Rated up to 4,000 lb. (1814 kg) Between Posts
  • Customize yours using individual components or choose one of the Kits

CRL Multi-Purpose Glass Storage Systems are designed for the upright storage of glass cases, glass (stoce) packs and loose lites. All Standard Components are protected with a hot dip galvanized finish.

Base Rails can be butted together in 60" (1.52 m) increments to form any length system required, and are predrilled with 1/2" (12.7 mm) holes for anchoring to shop floor. Base Rails are kept in alignment when butted together with a unique 1" (25 mm) square slip-joint tube that ensures a straight line is maintained.

Notes:
Dimensions: Rail Size: 11” x 5.5” x 60”
Center Rail Size: 4.5” (7.25” with flange) x 5.75”

Product Warning:
  • Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4's not included). Optional Easy Slide System (made of low friction material) can be mounted to the 2 x 4’s for extra protection

  • Center rail with easy slide must be used to support the glass when sliding individual pieces in and out of the rack

  • Complete with 11" connector tube for butting rails together in a straight line for desired length

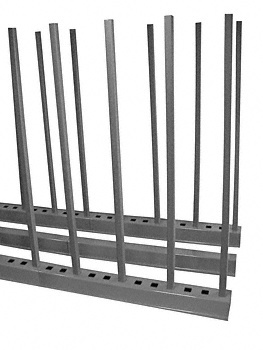

  • Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom

  • 2" square tube posts and 2" square rubber post caps to separate glass

  • Heavy-duty powder coated finish

  • Minimum of 2-degree angle when dropping stone in between posts

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
