CRL Satin Chrome Anchor Set

Finish/Color : Satin Chrome
Satin Chrome
Item #: 061210
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 4.0 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Chrome Anchor Set
×
CRL Satin Chrome Anchor Set
Quantity Standard Price Sale Price Your Price
CRL Satin Chrome Anchor Set Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 57
Dallas, Texas 11/15/2024
Chicago (Elgin), Illinois 6
San Francisco/Oakland (Union City), California 11/14/2024
Atlanta, Georgia 11/18/2024
New York Area (Secaucus, New Jersey) 3
Boston (Taunton), Massachusetts 11/18/2024
Orlando, Florida 11/19/2024
Denver, Colorado 4
Seattle (Kent), Washington 2
Cleveland (Solon), Ohio 11/18/2024
Philadelphia Area (Moorestown, New Jersey) 11/15/2024
Phoenix, Arizona 11/14/2024
Las Vegas, Nevada 7
Houston, Texas 11/15/2024
Miami, Florida 11/20/2024
San Diego, California 4
Carolinas and Virginia, South Carolina 11/19/2024
Product details
  • Finish/Color:
    Satin Chrome
  • Material
    Brass
Product Overview
  • Used with CRL 6 mm Rods
  • 062100, 062150, 062050

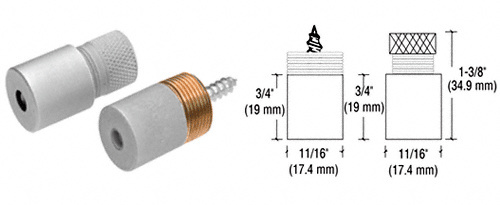

CRL's Rod Anchor Set consists of top and bottom fittings that attach to the Rod ends. The satin chrome anchor sets do not come with screws or fasteners to attach the anchors to either the ceiling or floor. The top and bottom fittings have 3/16" (5 mm) diameter holes to accommodate your choice of screws or fasteners.
IMPORTANT: All threads for Rod System Components are reverse thread. Installation screws by others.


INSTALLATION:


1) Plum and Install threaded Brass Bushing for Top Anchor and Threaded Cap (with non-threaded Rod hole) for Bottom Anchor.

2) Secure Top Rod Anchor onto threaded Brass bushing.

3) Install Rods 062100, 062150, 062050 tightly onto top anchor to obtain required length. Measure, mark and cut the bottom of the Rod right above the bottom anchor without the knurl fitting in place.

4) Once desired Rod Lengths are obtained, remove Rods and insert all required Supports, Bottom Knurl Anchor Cap, Spring then Collar which will be used to obtain the bottom spring tensioning.

5) Re-install all Rods with all required Supports, Bottom Knurl Anchor Cap, Spring and Collar.

6) Slide Collar towards the bottom of the Rod leaving about 1/8” from bottom end and tighten the collar set screw.

7) Screw the Bottom Anchor Assembly together.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
